Mono-Crystalline 200W Solar Panel

Technical parameter

Maximum Power(W)                           200W

Optimum Power Voltage(Vmp)           37.29V

Optimum Operating Current(Imp)       5.36A

Open Circuit Voltage(Voc)                  45.48V

Short Circuit Current(Isc)                     5.89A

Mechanical Characteristics

Cell Type Monocrystalline                    125x125mm (5 inch)

No of Cell                                              72 (6x12pcs)

Dimensions                                          1580x808x35mm

Weight                                                  14.5Kg

Front Glass                                           3.2mm,High Transmission, Low Iron,Tempered Glass

Junction box                                         IP65 Rated

Output Cable                                        TUV 1×4.0mm2/UL12AWG,Length:900mm

Temperature and Coefficients

Operating Temperature(°C):                -40°C ~ + 85°C

Maximum System Voltage:                  600V(UL)/1000V(IEC) DC

Maximum Rated Current Series:         15A

Temperature Coefficients of Pmax:     -0.47%

Temperature Coefficients of Voc:        -0.389%

Temperature Coefficients of Isc:           0.057%

Nominal Operationg Cell Temperature (NOCT): 47+/-2°C

Materials of solar panel

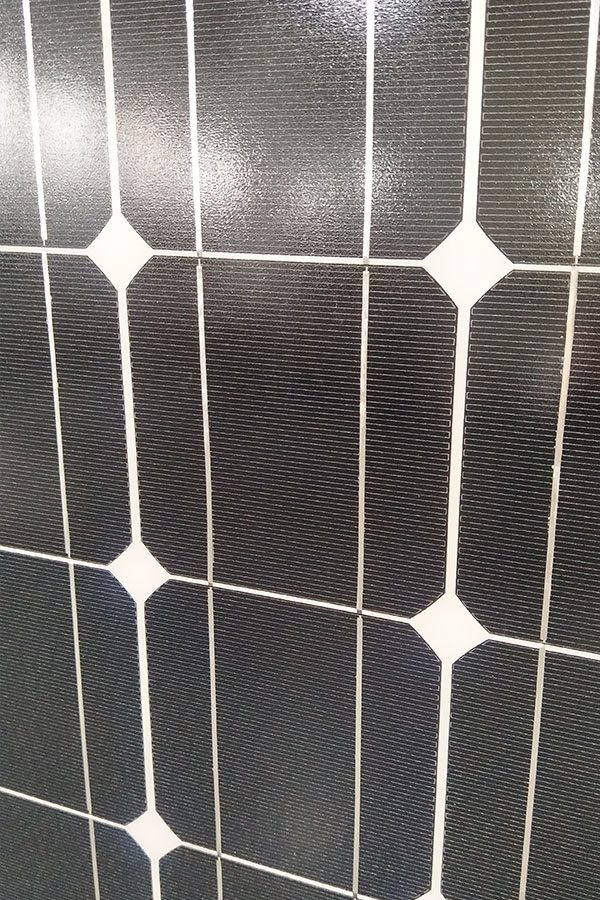

1).Solar Cell——Mono-crystalline solar cell 125*125mm

2).Front Glass——-3.2mm, high transmission, low iron, tempered glass

3).EVA——-excellent anti-aging EVA

4).TPT——-TPT hot seal made of flame resistance

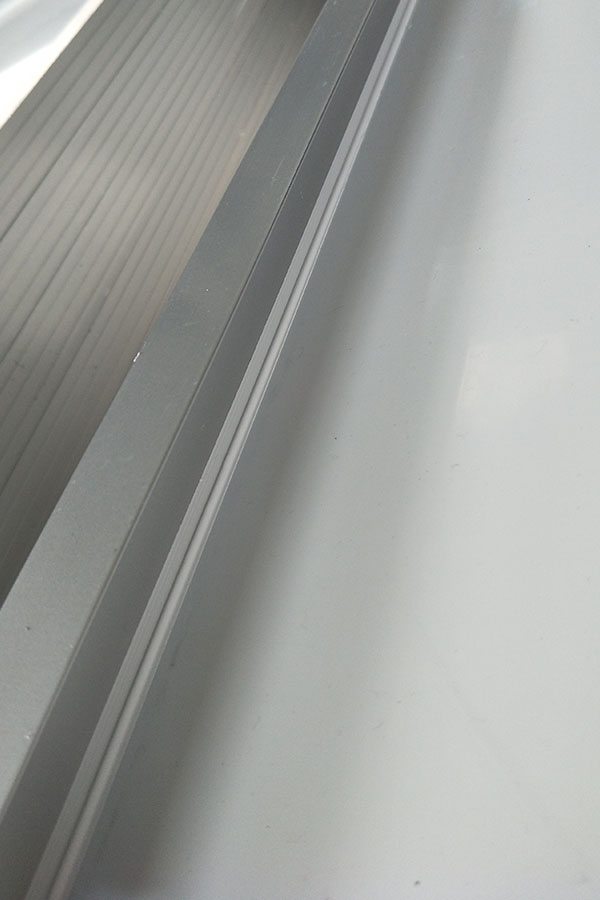

5).Frame——anodized aluminum profile

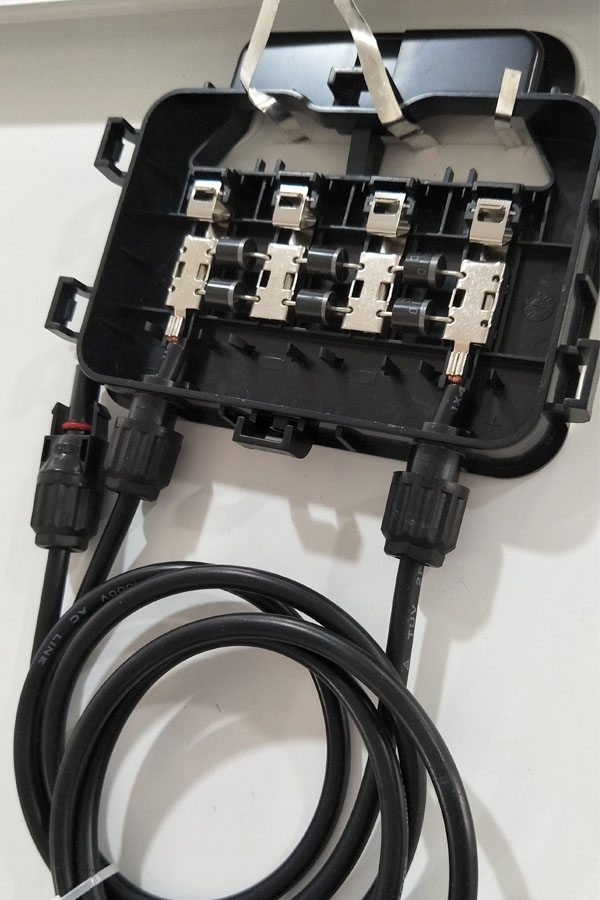

6).Junction Box——-IP65 rated, high quality, with diode protection

Superiority: high quality anodized aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resistance.

Features

1. High cell efficiency with quality silicon materials for long term output stability

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

4. Both Polycrystalline and Mono-crystalline

5. Excellent performance in harsh weather

6. Outstanding electrical performance under high temperature and low irradiance

Quality assurance testing

Thermal cycling test

Thermal shock test

Thermal/Freezing and high humidity cycling test

Electrical isolation test

Hail impact test

Mechanical, wind and twist loading test

Salt mist test

Light and water-exposure test

Moist carbon dioxide/sulphur dioxide

  • Previous:
  • Next:



  • A quick introduction to the Harbor Freight 100 W Solar Panel Kit. I give some first impressions and briefly share my opinion.

    Full Review:
    Day 1- https://youtu.be/9oXqWy4L5l0
    Day 2- https://youtu.be/BNQXp3X5n2w



    Build of a Solar powered RC controlled flying Wing that is completely self sufficient with a build in Autopilot and Camera equipment. Solar Impulse on a smaller scale ;)

    Record flight [6 hour 200km] https://www.youtube.com/watch?v=KHV-RjvTb1c

    Albatros XXL: http://www.kuestenflieger.de/modelle/albatros/index.html
    Setup:
    Photovoltaic Cells:
    30x Sunpower C60 125x125mm (max ETA: 22,5%)
    Solar cell surface: 0,467m²

    Autopilot:
    Ardupilot 2.5 with Arduplane FW
    Ublox GPS
    Airspeed-Sensor
    Voltage/Current Meter

    RC:
    EzUHF 4ch RC-Rx

    FPV:
    Mini 90° Live Cam
    Minimosd

    Drive:
    Brushless DC Motor: 4220 650kv
    Hobbywing X-Rotor ESC – 20amp
    Carbon folding propeller 11×10’’
    4S3,6Ah 30C SLS Lipo
