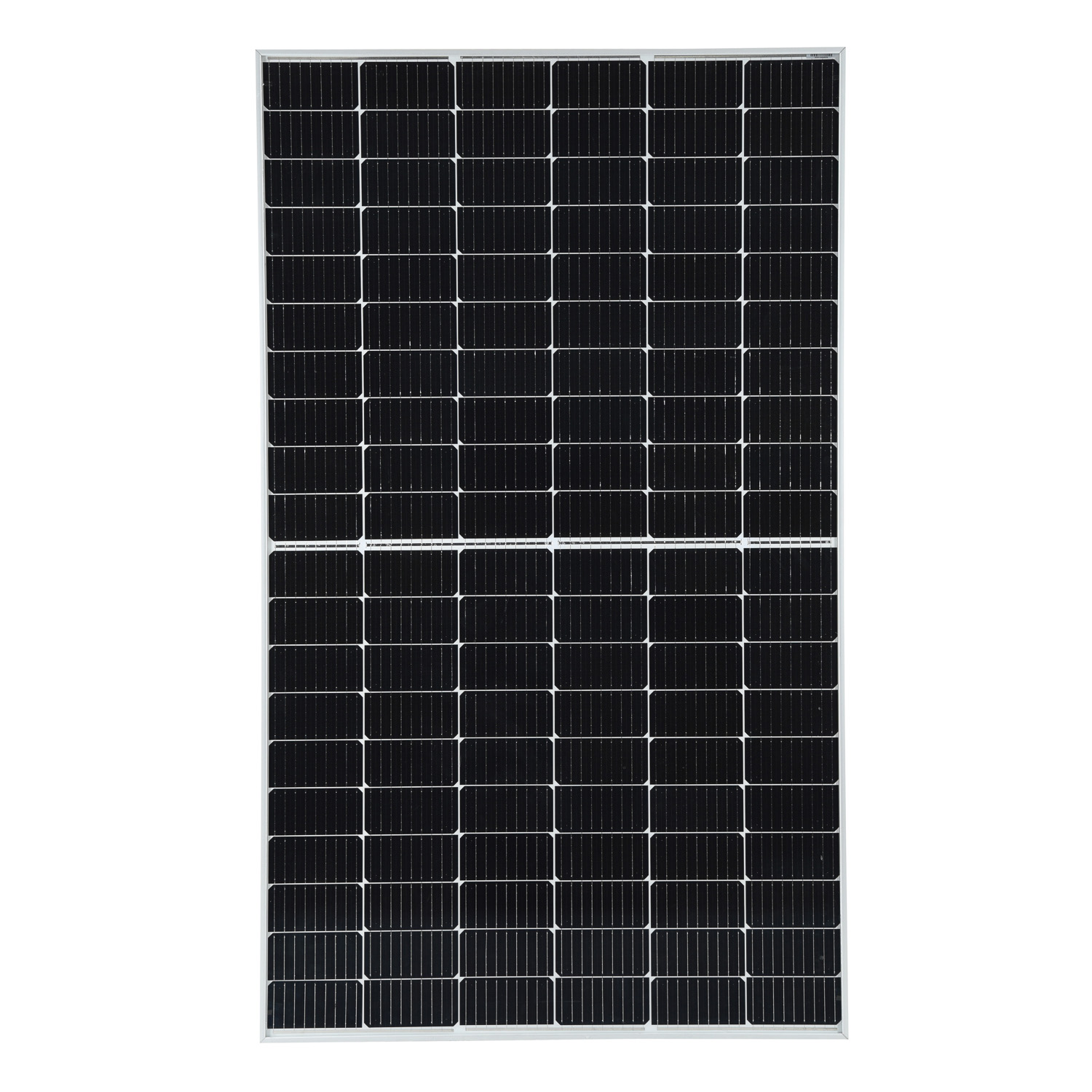

PERC Mono 410W
Short Description:
Cell Type Monocrystalline 166x83mm (6 inch)
No of Cell 120 (6x20pcs)
Dimensions 1750x1038x35mm
Weight 21Kg
Front Glass 3.2mm,High Transmission, Low Iron,Tempered Glass
Junction box IP68 Rated
Output Cable TUV 1×4.0mm2/UL12AWG,Length:300mm
Technical parameter
Maximum Power(W) 410W
Optimum Power Voltage(Vmp) 41V
Optimum Operating Current(Imp) 10A
Open Circuit Voltage(Voc) 49.2V
Short Circuit Current(Isc) 11A
Mechanical Characteristics
Cell Type Monocrystalline 166x183mm (6 inch)
No of Cell 120 (6x20pcs)
Dimensions 1750x1038x35mm
Weight 21Kg
Front Glass 3.2mm,High Transmission, Low Iron,Tempered Glass
Junction box IP68 Rated
Output Cable TUV 1×4.0mm2/UL12AWG,Length:300mm
Temperature and Coefficients
Operating Temperature(°C): -40°C ~ + 85°C
Maximum System Voltage: 600V(UL)/1000V(IEC) DC
Maximum Rated Current Series: 20A
Temperature Coefficients of Pmax: -0.435%
Temperature Coefficients of Voc: -0.35%
Temperature Coefficients of Isc: 0.043%
Nominal Operationg Cell Temperature (NOCT): 47+/-2°C
Short Description:
Cell Type Monocrystalline 166x83mm (6 inch)
No of Cell 120 (6x20pcs)
Dimensions 1750x1038x35mm
Weight 21Kg
Front Glass 3.2mm,High Transmission, Low Iron,Tempered Glass
Junction box IP68 Rated
Output Cable TUV 1×4.0mm2/UL12AWG,Length:300mm
- FOB Price:0.13USD/W-0.15USD/W
- Min.Order Quantity:10 Pieces
- Supply Ability:One day one 40HQ
- Port:Ningbo/Shanghai/Guangzhou/Shenzhen
- Payment Terms:T/T,L/C,Western Union
