Mono-Crystalline 10W Solar Panel

Technical parameter

Maximum Power(W)                           10W

Optimum Power Voltage(Vmp)        17.56V

Optimum Operating Current(Imp)    0.58A

Open Circuit Voltage(Voc)                 21.35V

Short Circuit Current(Isc)                   0.64A

Mechanical Characteristics

Cell Type Mono-crystalline                 52x35mm

No of Cell                                           36 (4x9pcs)

Dimensions                                        250x370x17mm

Weight                                               1.2Kg

Front Glass                                        3.5mm,High Transmission, Low Iron,Tempered Glass

Junction box                                       IP65 Rated

Output Cable                                      TUV 1×4.0mm2/UL12AWG,Length:900mm

Temperature and Coefficients

Operating Temperature(°C):                 -40°C ~ + 85°C

Maximum System Voltage:                    600V(UL)/1000V(IEC) DC

Maximum Rated Current Series:         15A

Temperature Coefficients of Pmax:     -0.47%

Temperature Coefficients of Voc:        -0.389%

Temperature Coefficients of Isc:           0.057%

Nominal Operationg Cell Temperature (NOCT): 47+/-2°C

Materials of solar panel

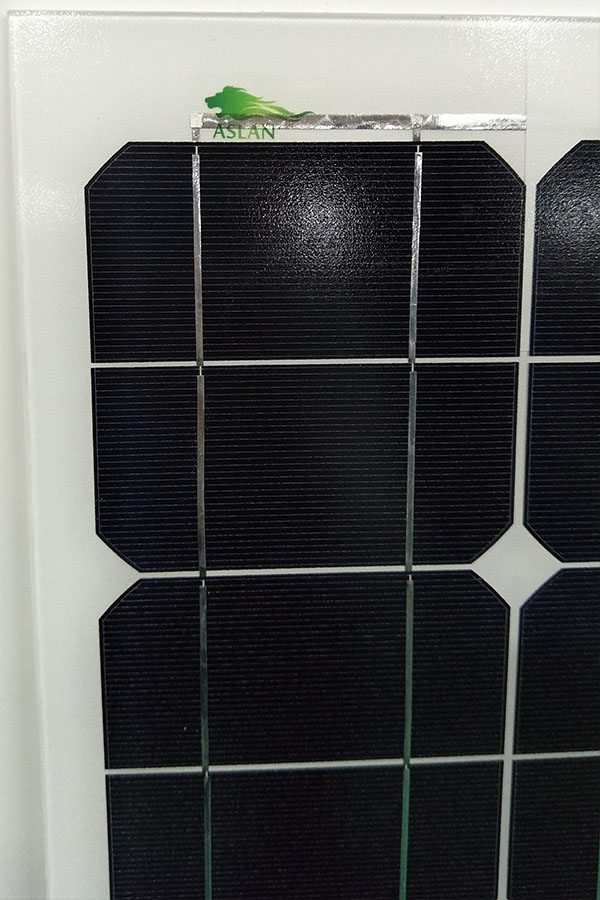

1).Solar Cell——Mono-crystalline solar cell 52*35mm

2).Front Glass——-3.2mm, high transmission, low iron, tempered glass

3).EVA——-excellent anti-aging EVA

4).TPT——-TPT hot seal made of flame resistance

5).Frame——anodized aluminum profile

6).Junction Box——-IP65 rated, high quality, with diode protection

Superiority: high quality anodized aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resistance.

Features

1. High cell efficiency with quality silicon materials for long term output stability

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

4. Both Poly-crystalline and Mono-crystalline

5. Excellent performance in harsh weather

6. Outstanding electrical performance under high temperature and low irradiance

Quality assurance testing

Thermal cycling test

Thermal shock test

Thermal/Freezing and high humidity cycling test

Electrical isolation test

Hail impact test

Mechanical, wind and twist loading test

Salt mist test

Light and water-exposure test

Moist carbon dioxide/sulphur dioxide
