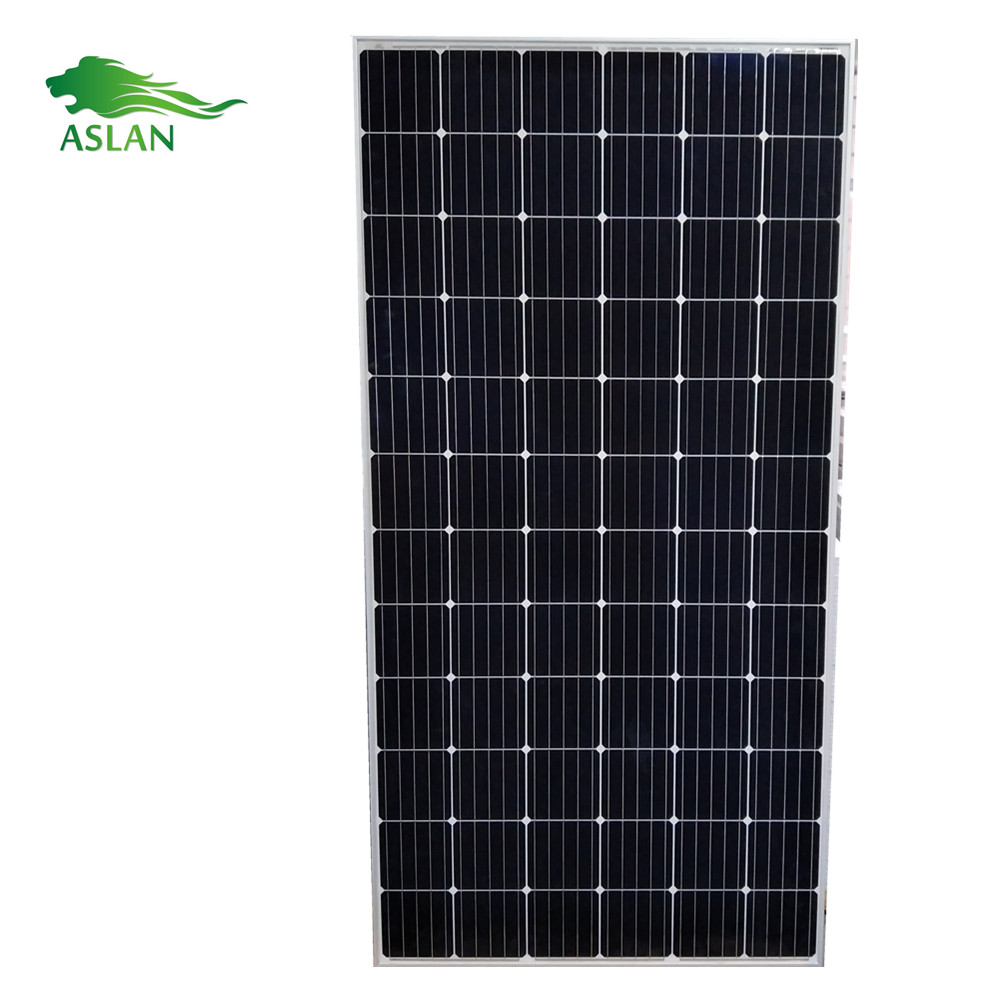

Mono-crystalline Solar Panel 330W

Technical parameter

Maximum Power(W)                         330W

Optimum Power Voltage(Vmp)         36.25V

Optimum Operating Current(Imp)     9.11A

Open Circuit Voltage(Voc)                43.52V

Short Circuit Current(Isc)                   10.02A

Mechanical Characteristics

Cell Type Monocrystalline                 156x156mm (6 inch)

No of Cell                                           72 (6x12pcs)

Dimensions                                        1956x992x40mm

Weight                                                22Kg

Front Glass                                        3.2mm,High Transmission, Low Iron,Tempered Glass

Junction box                                       IP65 Rated

Output Cable                                      TUV 1×4.0mm2/UL12AWG,Length:900mm

Temperature and Coefficients

Operating Temperature(°C):                -40°C ~ + 85°C

Maximum System Voltage:                  600V(UL)/1000V(IEC) DC

Maximum Rated Current Series:         15A

Temperature Coefficients of Pmax:     -0.47%

Temperature Coefficients of Voc:        -0.389%

Temperature Coefficients of Isc:           0.057%

Nominal Operationg Cell Temperature (NOCT): 47+/-2°C
