We are proud of the high customer satisfaction and wide acceptance due to our persistent pursuit of high quality both on product and service for Factory made hot-sale Mono-Crystalline 100W Solar Panel for Bhutan Manufacturer, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. If you are interested in any of our products, please feel free to contact us for more details.

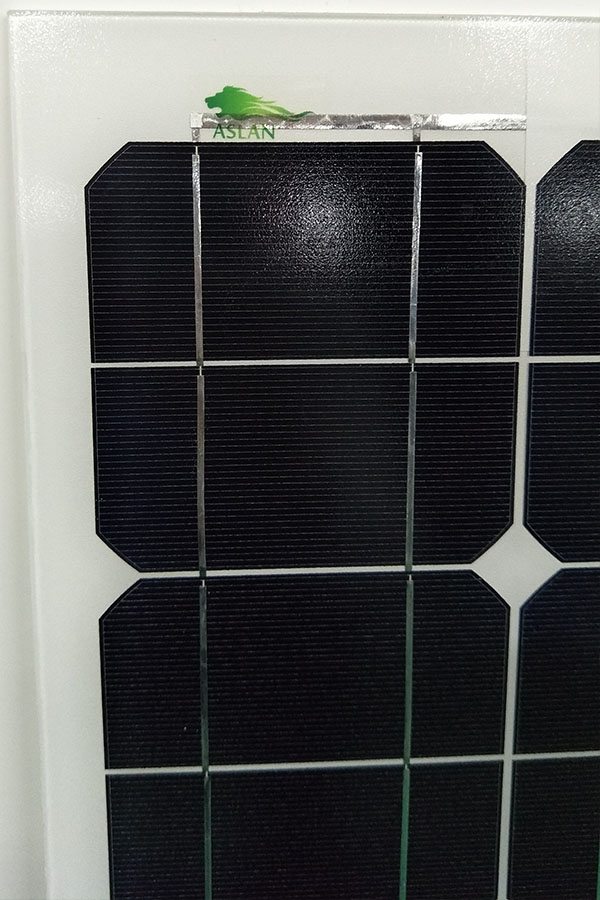

Mono-Crystalline 100W Solar Panel

Technical parameter

Maximum Power(W)                        100W

Optimum Power Voltage(Vmp)        18.66V

Optimum Operating Current(Imp)    5.36A

Open Circuit Voltage(Voc)               22.72V

Short Circuit Current(Isc)                 5.92A

Mechanical Characteristics

Cell Type Monocrystalline              125x125mm(5 inch)

No of Cell                                        36 (4x9pcs)

Dimensions                                     1200x554x35mm

Weight                                             7.8Kg

Front Glass                                     3.5mm,High Transmission, Low Iron,Tempered Glass

Junction box                                    IP65 Rated

Output Cable                                   TUV 1×4.0mm2/UL12AWG,Length:900mm

Temperature and Coefficients

Operating Temperature(°C):               -40°C ~ + 85°C

Maximum System Voltage:                  600V(UL)/1000V(IEC) DC

Maximum Rated Current Series:         15A

Temperature Coefficients of Pmax:     -0.47%

Temperature Coefficients of Voc:        -0.389%

Temperature Coefficients of Isc:           0.057%

Nominal Operationg Cell Temperature (NOCT): 47+/-2°C

Materials of solar panel

1).Solar Cell——Mono-crystalline solar cell 125*125mm

2).Front Glass——-3.2mm, high transmission, low iron, tempered glass

3).EVA——-excellent anti-aging EVA

4).TPT——-TPT hot seal made of flame resistance

5).Frame——anodized aluminum profile

6).Junction Box——-IP65 rated, high quality, with diode protection

Superiority: high quality anodized aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resistance.

Features

1. High cell efficiency with quality silicon materials for long term output stability

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

4. Both Polycrystalline and Mono-crystalline

5. Excellent performance in harsh weather

6. Outstanding electrical performance under high temperature and low irradiance

Quality assurance testing

Thermal cycling test

Thermal shock test

Thermal/Freezing and high humidity cycling test

Electrical isolation test

Hail impact test

Mechanical, wind and twist loading test

Salt mist test

Light and water-exposure test

Moist carbon dioxide/sulphur dioxide
