9 Years manufacturer Mono-Crystalline 150W Solar Panel Supply to Morocco

Short Description:


Product Detail

Product Tags

We also offer product sourcing and flight consolidation services. We have our own factory and sourcing office. We can provide you with almost every type of product related to our product range for 9 Years manufacturer Mono-Crystalline 150W Solar Panel Supply to Morocco, winning customers' trust is the gold key to our success! If you are interested in our products, please feel free to visit our web site or contact us.


Mono-Crystalline 150W Solar Panel

Technical parameter

Maximum Power(W)                            150W

Optimum Power Voltage(Vmp)            17.92V

Optimum Operating Current(Imp)        7.83A

Open Circuit Voltage(Voc)                   21.86V

Short Circuit Current(Isc)                     8.59A

Mechanical Characteristics

Cell Type Monocrystalline                 156x156mm (6 inch)

No of Cell                                            36 (4x9pcs)

Dimensions                                       1485x668x35mm

Weight                                                 11.6KGS

Front Glass                                        3.2mm,High Transmission, Low Iron,Tempered Glass

Junction box                                       IP65 Rated

Output Cable                                     TUV 1×4.0mm2/UL12AWG,Length:900mm

Temperature and Coefficients

Operating Temperature(°C):                 -40°C ~ + 85°C

Maximum System Voltage:                    600V(UL)/1000V(IEC) DC

Maximum Rated Current Series:         15A

Temperature Coefficients of Pmax:     -0.435%

Temperature Coefficients of Voc:        -0.35%

Temperature Coefficients of Isc:           0.043%

Nominal Operationg Cell Temperature (NOCT): 47+/-2°C

Materials of solar panel

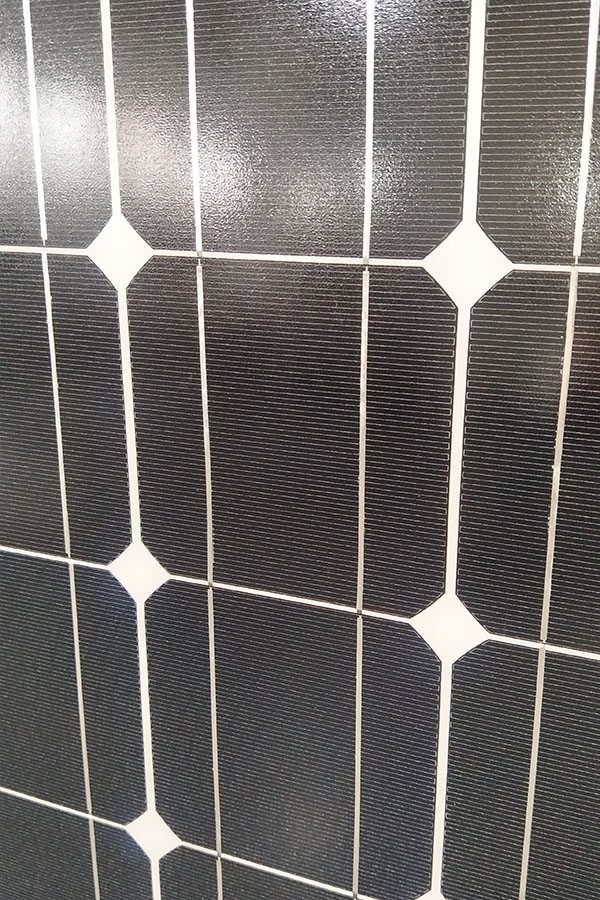

1).Solar Cell——Mono-crystalline solar cell 156*156mm

2).Front Glass——-3.2mm, high transmission, low iron, tempered glass

3).EVA——-excellent anti-aging EVA

4).TPT——-TPT hot seal made of flame resistance

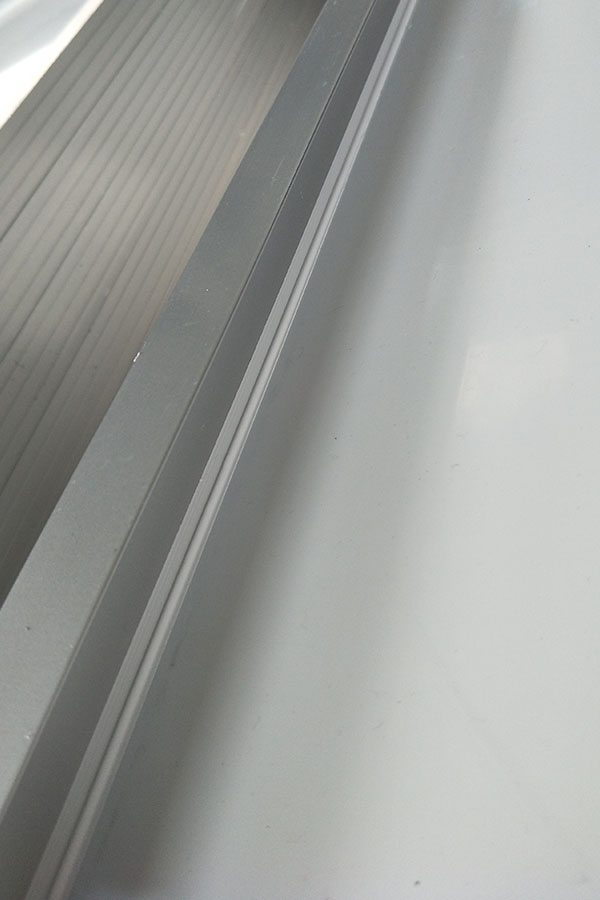

5).Frame——anodized aluminum profile

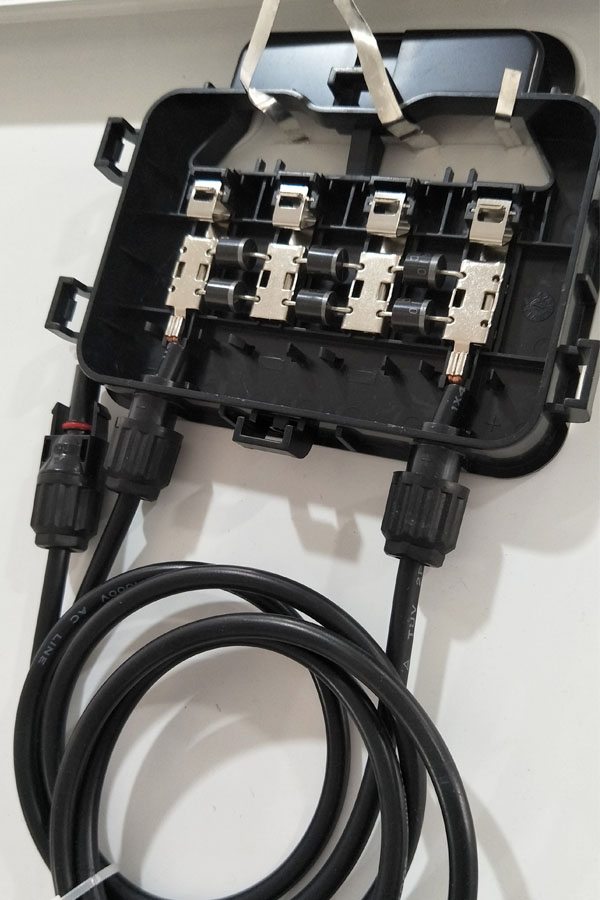

6).Junction Box——-IP65 rated, high quality, with diode protection

Superiority: high quality anodized aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resistance.

Features

1. High cell efficiency with quality silicon materials for long term output stability

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

4. Both Polycrystalline and Mono-crystalline

5. Excellent performance in harsh weather

6. Outstanding electrical performance under high temperature and low irradiance

Quality assurance testing

Thermal cycling test

Thermal shock test

Thermal/Freezing and high humidity cycling test

Electrical isolation test

Hail impact test

Mechanical, wind and twist loading test

Salt mist test

Light and water-exposure test

Moist carbon dioxide/sulphur dioxide
