We have advanced equipment. Our products are exported to the USA, the UK and so on, enjoying a good reputation among customers for 16 Years manufacturer Poly-crystalline Solar Panel 40W Supply to Seychelles, Welcome to set up long-term relationship with us. Best Price For Good Quality in China.

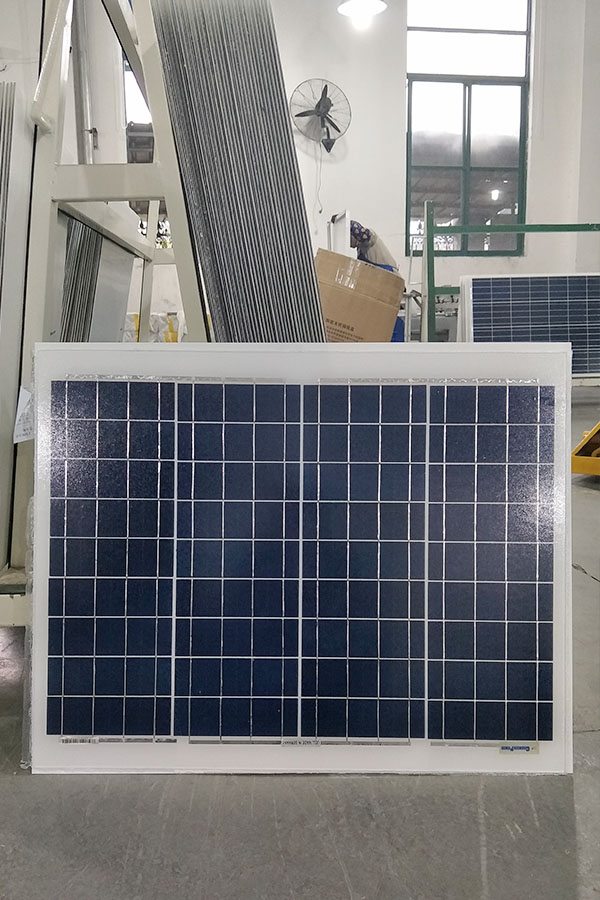

Poly-crystalline Solar Panel 40W

Technical parameter

Maximum Power(W)                        40W

Optimum Power Voltage(Vmp)        17.35V

Optimum Operating Current(Imp)    2.31A

Open Circuit Voltage(Voc)               21.16V

Short Circuit Current(Isc)                 2.53A

Mechanical Characteristics

Cell Type Polycrystalline                156 x 52mm

No of Cell                                     36 (4x9pcs)

Dimensions                                 670x420x30mm

Weight                                        4.0Kg

Front Glass                                 3.5mm,High Transmission, Low Iron,Tempered Glass

Junction box                                    IP65 Rated

Output Cable                                   TUV 1×4.0mm2/UL12AWG,Length:900mm

Temperature and Coefficients

Operating Temperature(°C):                -40°C ~ + 85°C

Maximum System Voltage:                  600V(UL)/1000V(IEC) DC

Maximum Rated Current Series:         15A

Temperature Coefficients of Pmax:     -0.47%

Temperature Coefficients of Voc:        -0.389%

Temperature Coefficients of Isc:           0.057%

Nominal Operationg Cell Temperature (NOCT): 47+/-2°C

 Materials of solar panel

1).Solar Cell——Polycrystalline solar cell 156*52mm

2).Front Glass——-3.2mm, high transmission, low iron, tempered glass

3).EVA——-excellent anti-aging EVA

4).TPT——-TPT hot seal made of flame resistance

5).Frame——anodized aluminum profile

6).Junction Box——-IP65 rated, high quality, with diode protection

Superiority: high quality anodized aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resistance.

Features

1. High cell efficiency with quality silicon materials for long term output stability

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

4. Both Poly-crystalline and Mono-crystalline

5. Excellent performance in harsh weather

6. Outstanding electrical performance under high temperature and low irradiance

Quality assurance testing

Thermal cycling test

Thermal shock test

Thermal/Freezing and high humidity cycling test

Electrical isolation test

Hail impact test

Mechanical, wind and twist loading test

Salt mist test

Light and water-exposure test

Moist carbon dioxide/sulphur dioxide

  • Previous:
  • Next:



  • Solar Panels – Netzero Solar Home http://MrEnergyCzar.com Hi Everybody, MrEnergyCzar here. This video is about my solar array.

    Facebook:

    http://www.facebook.com/MrEnergyCzar.PeakOil

    Twitter:

    https://Twitter.com/MrEnergyCzar

    • Behind me is a pole-mount solar array. Notice that there are 24 all black Sunpower 225 watt modules on one single rack. It’s very rare that you’ll see that. Due to zoning restrictions I was forced to have all my solar on one limited rack in a certain spot in my yard which is right behind me.

    • Basically, this system, this is the one that got destroyed by a tree last year, its been replaced by insurance. It makes about 5 megawatts or 5,000 KWH per year. My home uses just over 3,000.

    • Since I’ve got the electric car, I now use and extra 1,700 KWH so my house and car uses the 5 megawatts or 5,000 KWH this system produces every year. That is why I’m able to have a net-zero solar powered home, including the car.

    • Let’s see what’s behind there. On the underside of the array, what we have is two massive poles here that go into concrete footings that are about 6 feet deep 3 feet wide and several yards of concrete on each of them.

    • An airplane could probably bounce off of one of these. This is kill switch, which is standard, it shuts the system down, we also have it out at the garage.

    • Underneath here we have netting to keep the little fingers out and also to make it look gray from the underside rather than white. Here’s the other pole, which is of course lower. This right here is a 45 degree angle.

    • Okay, so here we are in the garage. The solar system that we saw outside there, the copper cable goes underground and then comes into the garage. This is where the inverter is.

    • The system outside makes DC electric current. This inverter converts that DC current into AC current so you can use it in your house. If you look closely here, when you tap it, it changes the numbers. It shows I save 260,000 pounds of CO2.

    • Right now I’m only making 500 watts per hour because its after 5 o’clock. It shows you the total, today we made about 30 KWH which is a pretty decent sunny day.

    • Over here, you have an actual production meter. The last few years we’ve made about 15,000 KWH or 15 Megawatts. It makes about 5,000 KWH per year as I said earlier. That’s the solar system, pretty straight forward, there’s also a net-meter outside.

    • When I produce more during the day the electrical grid credits me so I can use those credits to carry me through the winter. Obviously in summertime you make a lot more than in the wintertime.
