11 Years Manufacturer Mono-Crystalline 80W Solar Panel Wholesale to Israel

Short Description:


Product Detail

Product Tags

To meet the customers' over-expected satisfaction , we have our strong team to provide our best overall service which includes marketing, sales, designing, production, quality controlling, packing, warehousing and logistics for 11 Years Manufacturer Mono-Crystalline 80W Solar Panel Wholesale to Israel, We are also constantly looking to establish relationship with new suppliers to provide innovative and smart solution to our valued customers.


Mono-Crystalline 80W Solar Panel

Technical parameter

Maximum Power(W)                        80W

Optimum Power Voltage(Vmp)        15.90V

Optimum Operating Current(Imp)    5.03A

Open Circuit Voltage(Voc)               18.58V

Short Circuit Current(Isc)                 5.59A

Mechanical Characteristics

Cell Type Monocrystalline               125x125mm (5 inch)

No of Cell                                         36 (4x9pcs)

Dimensions                                     906x670x35mm

Weight                                             7.2KGS

Front Glass                                     3.2mm,High Transmission, Low iron, tempered Glass

Junction box                                    IP65 Rated

Output Cable                                   TUV 1×4.0mm2/UL12AWG,Length: 900mm

Temperature and Coefficients

Operating Temperature(°C):                -40°C ~ + 85°C

Maximum System Voltage:                  600V(UL)/1000V(IEC) DC

Maximum Rated Current Series:         15A

Temperature Coefficients of Pmax:     -0.435%

Temperature Coefficients of Voc:        -0.35%

Temperature Coefficients of Isc:           0.043%

Nominal Operating Cell Temperature (NOCT): 47+/-2°C

Materials of solar panel

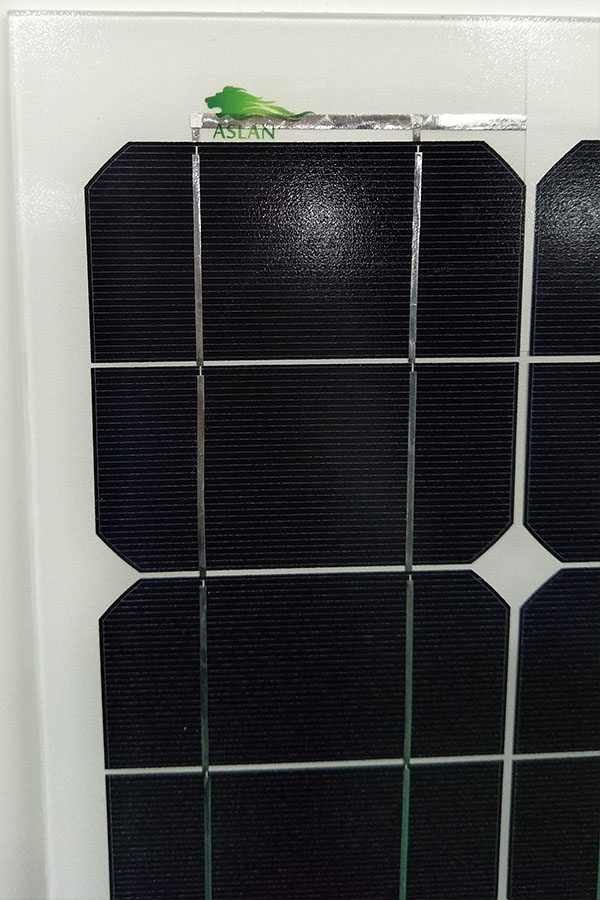

1).Solar Cell——Mono-crystalline solar cell 125*125mm

2).Front Glass——-3.2mm, high transmission, low iron, tempered glass

3).EVA——-excellent anti-aging EVA

4).TPT——-TPT hot seal made of flame resistance

5).Frame——anodized aluminum profile

6).Junction Box——-IP65 rated, high quality, with diode protection

Superiority: high quality anodized aluminum frame, high efficiency long life, easy installation, strong wind resistance, strong hail resistance.

Features

1. High cell efficiency with quality silicon materials for long term output stability

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

4. Both Polycrystalline and Mono-crystalline

5. Excellent performance in harsh weather

6. Outstanding electrical performance under high temperature and low irradiance

Quality assurance testing

Thermal cycling test

Thermal shock test

Thermal/Freezing and high humidity cycling test

Electrical isolation test

Hail impact test

Mechanical, wind and twist loading test

Salt mist test

Light and water-exposure test

Moist carbon dioxide/sulphur dioxide
